Thermax LTD Engineering Construction

Client: Thermax LTD · Heavy Engineering & Energy Leader

Request Case Study Data

Verified Digital Deliverable

Location

India

India / Worldwide

Footprint / Scale

15,000 sq m

Industrial Plant Engineering

Delivery Status

Delivered

Documented Milestone

Engineering Scope

LOD 400 Architecture & Structural, Rebar Model, Bill of Quantities and GFC Drawings

01 / Engineering Narrative

Executive Overview & Constructability Context

An advanced industrial engineering facility for energy and environment solution giant Thermax LTD, covering 15,000 square meters.

VADsoft provided end-to-end LOD 400 Architectural and Structural modeling, including high-precision 3D rebar detailing and automated Bar Bending Schedules (BBS).

The deliverable directly supported on-site steel fabrication, quantity takeoff extraction, and Good-for-Construction drawings.

02 / Deliverables Matrix

Scope of Work & Deliverables

Documented LOD standards, coordination protocols, and good-for-construction packages delivered for this project.

1LOD 400 Reinforced concrete and heavy structural steel modeling

23D Rebaring with customizable colors and Element True concrete cover

3Automated Bar Bending Schedules (BBS) and coupler connections

4Precise Bill of Quantities (BoQ) and material estimation

5Good-for-Construction civil and structural drawing packages

03 / Core Capabilities

Disciplines Engaged

LOD 400 Structural Engineering3D Rebar Detailing & BBSBill of Quantities (BoQ)Good-for-Construction Drawings

04 / Technical Evidence

Verified Documentation & Drawing Sheets

1 Documented Sheet

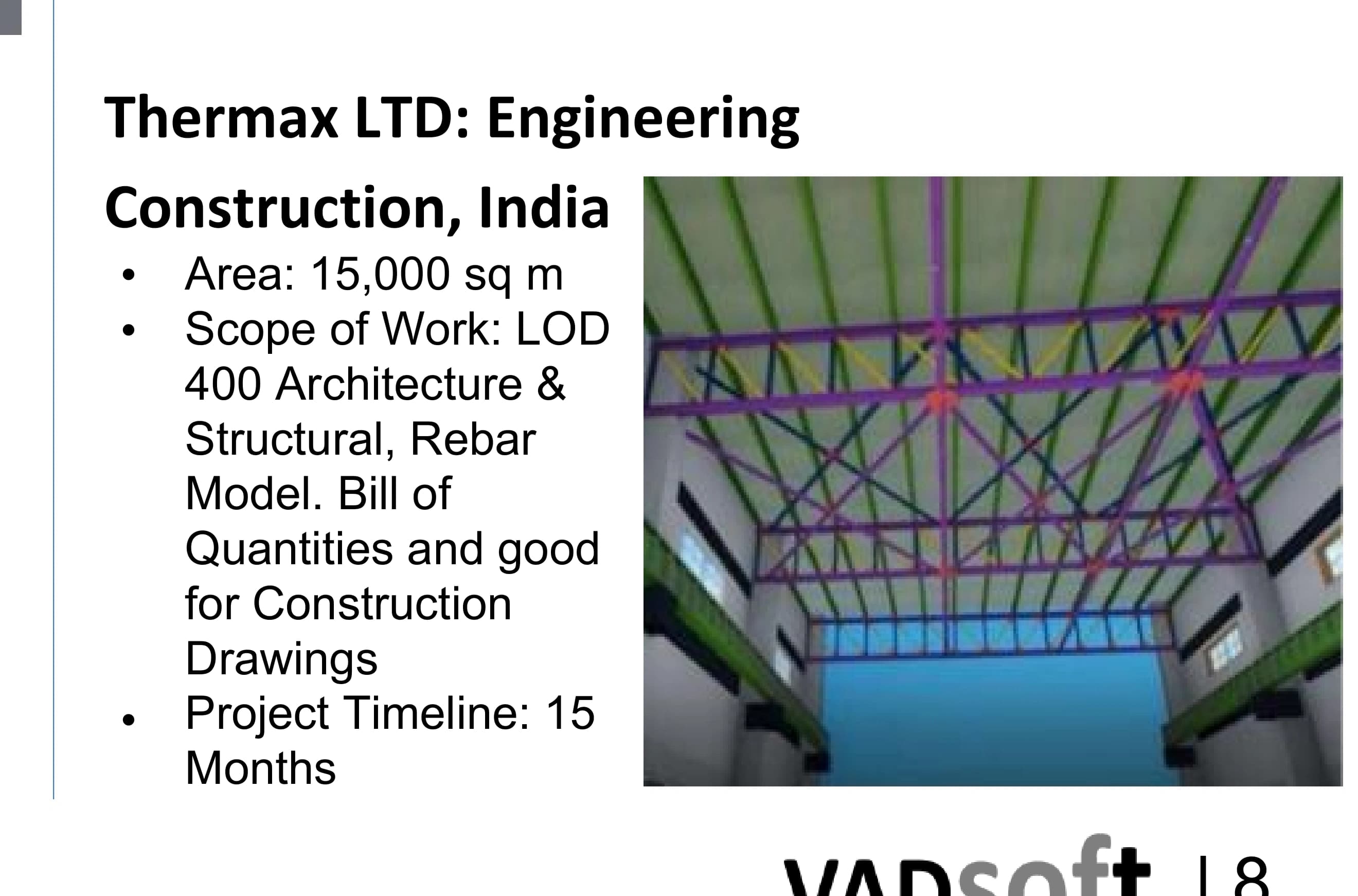

Authentic drawing sheets, MEP coordination plans, and 3D BIM model captures extracted directly from the verified project profile documentation. Click any sheet to expand.

View Full Sheet

Sheet #1

Verified Documentation Citation

Documented in VADsoft BIM Services Profile (Page 8): 15,000 sq m, 15 months delivery timeline.
